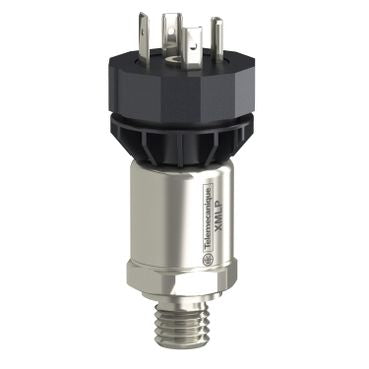

Telemecanique Sensors Air, Fresh Water, Gas, Hydraulic Oil Differential Pressure Switch, Analogue -1 → 5bar [XMLPM05GC71F]; 146-2944
0₫
Mã kho: 1462944
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Range | -1 → 5bar |
| Pressure Reading Type | Differential |
| Media Measured | Air, Fresh Water, Gas, Hydraulic Oil |
| Output Type | Analogue |
| Supply Voltage | 24 V dc |
| Minimum Pressure Reading | -1bar |
| Maximum Pressure Reading | 5bar |
| Electrical Connection | 3-Pin DIN 43650 Male Connector |
| Analogue Output | 0 → 10 V |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
| Accuracy | 0.001 |
| Response Time | ≤2 ms |
| Maximum Current | <7 mA |
| Housing Material | Ceramic, FPM, Stainless Steel 316L |
| IP Rating | IP65 |
| Mounting Type | Cable Mount |
