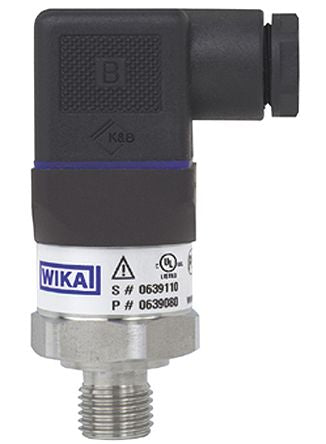

WIKA for Gas, Liquid Pressure Sensor, 6bar Max Pressure Reading , 8 → 35 V dc, G1/4, IP65 [46882608]; 124-1486
by WIKA
0₫
Mã kho: 1241486
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 6bar |
| Accuracy | 0.0025 |
| Output Type | Analogue |
| Media Measured | Gas, Liquid |
| Process Connection | G1/4 |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | DIN 175301-803 A |
| Response Time | < 3 ms |
| Supply Voltage | 8 → 35 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP65 |
| Minimum Operating Temperature | -15°C |
| Maximum Pressure Setting | 6bar |
| Minimum Pressure Setting | 0bar |
| Series | S-20 |
| Maximum Operating Temperature | +125°C |
