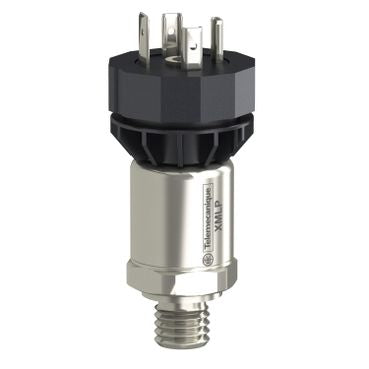

Telemecanique Sensors Differential for Air, Fresh Water, Hydraulic Oil Pressure Sensor, 300bar Max Pressure Reading , [XMLP100BC71F]; 146-5280
0₫
Mã kho: 1465280
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Differential |
| Maximum Pressure Reading | 300bar |
| Accuracy | ±0.5 % |
| Output Type | Analogue |
| Media Measured | Air, Fresh Water, Hydraulic Oil |
| Process Connection | G1/4 |
| Analogue Output | 0 → 10 V |
| Electrical Connection | 3-Pin EN 175301-803-A Male Connector |
| Response Time | <2 ms |
| Maximum Current | <7 mA |
| Supply Voltage | 24 V dc |
| Housing Material | FPM, Stainless Steel |
| IP Rating | IP65 |
| Mounting Type | Cable Mount |
| Maximum Pressure Setting | 100bar |
| Minimum Pressure Setting | 0bar |
| Minimum Operating Temperature | -30°C |
| Series | XMLP |
| Maximum Operating Temperature | +85°C |
