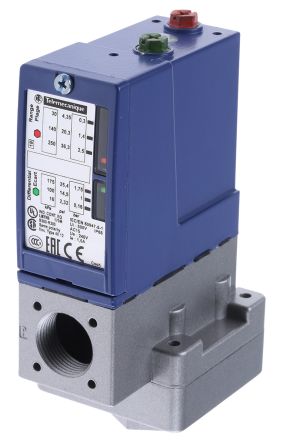

Telemecanique Sensors Differential for Various Media Pressure Sensor, 2.5bar Max Pressure Reading , 120 → 240 V [XMLB002A2S11]; 324-0992
0₫
Mã kho: 3240992
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pressure Reading Type | Differential |
Minimum Pressure Reading | 0.3bar |
Maximum Pressure Reading | 2.5bar |
Accuracy | 0.02 |
Output Type | Relay |
Media Measured | Air, Fresh Water, Hydraulic Fluid, Sea Water |
Process Connection | G1/4 |
Electrical Connection | PG13.5 Cable Gland |
Maximum Current | 3 A ac, 100 mA dc |
Supply Voltage | 120 → 240 V ac, 250 V dc |
Housing Material | Zinc Alloy |
IP Rating | IP66 |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -25°C |
