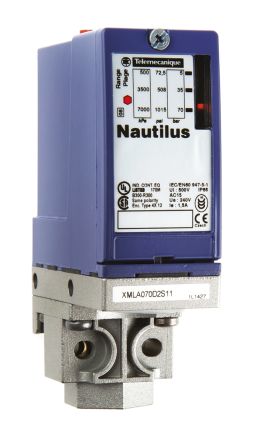

Telemecanique Sensors Differential for Hydraulic Fluid Pressure Sensor, 70bar Max Pressure Reading , 120 → 240 V [XMLA070D2S11]; 324-0958
0₫
Mã kho: 3240958
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Differential |
| Minimum Pressure Reading | 50bar |
| Maximum Pressure Reading | 70bar |
| Accuracy | 0.02 |
| Output Type | Relay |
| Media Measured | Hydraulic Fluid |
| Process Connection | G1/4 |
| Electrical Connection | PG13.5 Cable Gland |
| Maximum Current | 3 A ac, 100 mA dc |
| Supply Voltage | 120 → 240 V ac, 250 V dc |
| Housing Material | Zinc Alloy |
| IP Rating | IP66 |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
