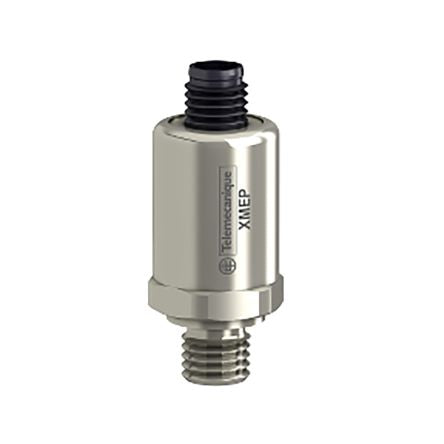

Telemecanique Sensors for Air, Fresh Water, Hydraulic Oil Pressure Sensor, 100bar Max Pressure Reading , 12 → 24 [XMEP100BD21F]; 177-8857
0₫
Mã kho: 1778857
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 100bar |
| Accuracy | ±0.5 % |
| Output Type | Analogue |
| Media Measured | Air, Fresh Water, Hydraulic Oil |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | 4 Pin M12 Male Connector |
| Response Time | <=2 ms |
| Maximum Current | 23 mA |
| Supply Voltage | 12 → 24 V dc |
| Housing Material | Fluorocarbon FPM, Stainless Steel AISI 316L |
| IP Rating | IP65, IP67, IP69K |
| Maximum Pressure Setting | 100bar |
| Minimum Pressure Setting | 0bar |
| Mounting Type | Thread Mount |
| Minimum Operating Temperature | -40°C |
| Series | XMEP |
| Maximum Operating Temperature | +100°C |
