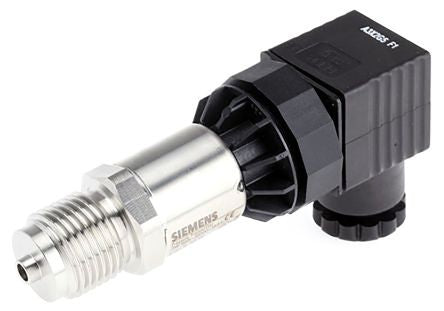

Siemens Gauge for Various Media Pressure Sensor, 2.5bar Max Pressure Reading , 7 → 33 V dc, G1/2, IP65, IP67 [7MF1565-3BD00-1AA1]; 125-3724
by Siemens
0₫
Mã kho: 1253724
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 2.5bar |
| Accuracy | 0.0025 |
| Output Type | Analogue |
| Media Measured | Aggressive Media, Gas, Liquid, Non-Aggressive Media, Vapour |
| Process Connection | G1/2 |
| Electrical Connection | DIN EN 175301 Connector, M16 |
| Analogue Output | 4 → 20 mA |
| Response Time | <5 ms |
| Maximum Current | 20 mA |
| Supply Voltage | 7 → 33 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP65, IP67 |
| Maximum Operating Temperature | +85°C |
| Mounting Type | Threaded |
| Minimum Operating Temperature | -25°C |
