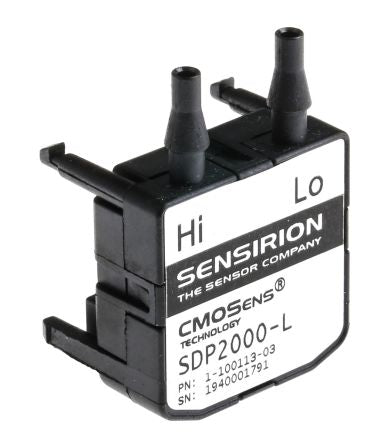

![Sensirion SDP2000-L 1732221](http://nguyenxuong.com/cdn/shop/products/F7744091-01_391x444.jpg?v=1593775399)
Sensirion Differential for Air, Non-Aggressive Gas Pressure Sensor, 3500Pa Max Pressure Reading , 4.75 → 5.25 V, [SDP2000-L]; 173-2221
by Sensirion
0₫
Mã kho: 1732221
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pressure Reading Type | Differential |
Minimum Pressure Reading | -100Pa |
Maximum Pressure Reading | 3500Pa |
Accuracy | 0.2 %, 1.5 % |
Output Type | Analogue |
Media Measured | Air, Non-Aggressive Gas |
Electrical Connection | 3 Pin SMD Connector |
Analogue Output | 0.25 → 4 V |
Response Time | 40 ms |
Maximum Current | 5.2 mA |
Supply Voltage | 4.75 → 5.25 V |
Housing Material | PPS |
IP Rating | IP20 |
Series | SDP2000 |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +60°C |
