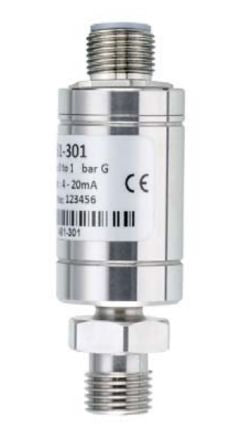

RS PRO Gauge Pressure Sensor, 150psi Max Pressure Reading , 9 → 32 V dc, NPT 1/4, IP67; 175-5030
by RS PRO
0₫
Mã kho: 1755030
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | -14.5psi |
| Maximum Pressure Reading | 150psi |
| Accuracy | ±0.25 % |
| Output Type | Analogue |
| Process Connection | NPT 1/4 |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | M12 Connector |
| Maximum Current | 20 mA |
| Supply Voltage | 9 → 32 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP67 |
| Mounting Type | Threaded |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
| Series | IPSU |
