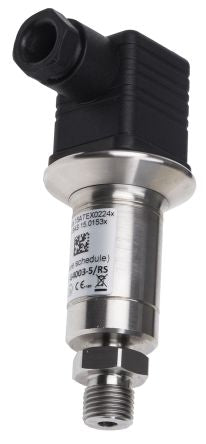

RS PRO ATEX, IECEx Gauge for Gas, Liquid Pressure Sensor, 400bar Max Pressure Reading , 9 → 32 V dc, BSP 1/4,; 102-4133
by RS PRO
0₫
Mã kho: 1024133
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 400bar |
| Accuracy | ±0.25 % |
| Output Type | Analogue |
| Media Measured | Gas, Liquid |
| Process Connection | G1/4 |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | DIN 43650 Type A |
| Supply Voltage | 9 → 32 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP65 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
| Mounting Type | Threaded |
| Hazardous Area Certification | ATEX, IECEx |
| Maximum Pressure Setting | 400bar |
| Minimum Pressure Setting | -1bar |
