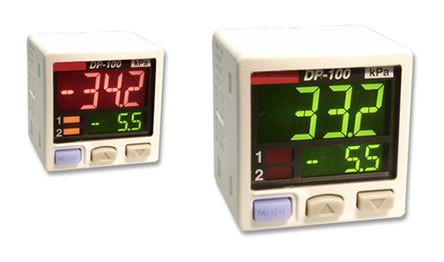

Panasonic Gauge for Non-Corrosive Gas Pressure Sensor, 0.1MPa Max Pressure Reading , 12 → 24 V dc, G1/8, IP40 [DP101M]; 914-8362
by Panasonic
0₫
Mã kho: 9148362
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | -1bar |
| Maximum Pressure Reading | 1bar |
| Output Type | NPN-NO/NC |
| Media Measured | Non-Corrosive Gas |
| Process Connection | G1/8 |
| Electrical Connection | Wire Lead |
| Response Time | 5000 ms |
| Maximum Current | 100 mA |
| Supply Voltage | 12 → 24 V dc |
| Housing Material | PBT |
| IP Rating | IP40 |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Mounting Type | Panel Mount |
