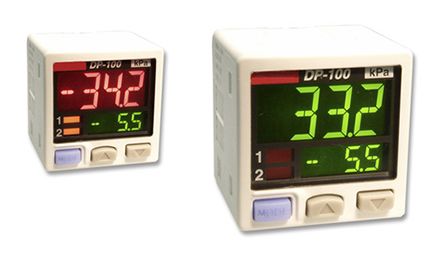

Panasonic Gauge for Non-Corrosive Gas Pressure Sensor, 100kPa Max Pressure Reading , 12 → 24 V dc, G1/8, IP40 [DP101EP]; 914-8369
by Panasonic
0₫
Mã kho: 9148369
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pressure Reading Type | Gauge |
Minimum Pressure Reading | -1bar |
Maximum Pressure Reading | 10bar |
Accuracy | ±1 % |
Output Type | Relay |
Media Measured | Non-Corrosive Gas |
Process Connection | G1/8 |
Electrical Connection | Wire Lead |
Analogue Output | 100 mA |
Response Time | 2.5 ms |
Supply Voltage | 12 → 24 V dc |
Housing Material | PBT |
IP Rating | IP40 |
Maximum Operating Temperature | +50°C |
Minimum Operating Temperature | -10°C |
