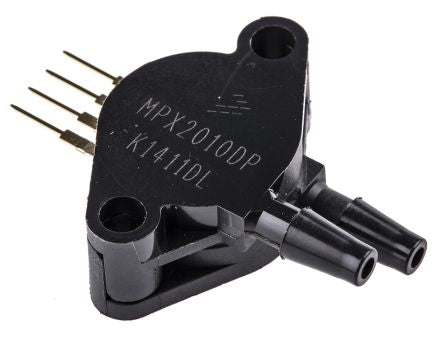

NXP Differential for Air Pressure Sensor, 10kPa Max Pressure Reading , 10 V dc [MPX2010DP]; 922-7308
by NXP
0₫
Mã kho: 9227308
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pressure Reading Type | Differential |
Minimum Pressure Reading | 0bar |
Maximum Pressure Reading | 10kPa |
Accuracy | ±1 % |
Media Measured | Air |
Electrical Connection | PCB Mount |
Analogue Output | 24 → 26 mV |
Response Time | 1 ms |
Supply Voltage | 10 V dc |
Housing Material | Epoxy |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -40°C |
