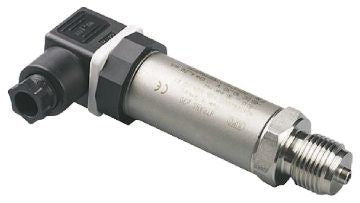

Jumo Gauge for Fluid, Gas Pressure Sensor, 25bar Max Pressure Reading , 10 → 30 V dc, G1/2, IP65, IP67 [404366/000-461-405-504-20-61/000]; 423-3721
by Jumo
0₫
Mã kho: 4233721
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 25bar |
| Accuracy | 0.02 |
| Output Type | Analogue |
| Media Measured | Fluid, Gas |
| Process Connection | G1/2 |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | DIN 43650 Connector |
| Supply Voltage | 10 → 30 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP65, IP67 |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +120°C |
