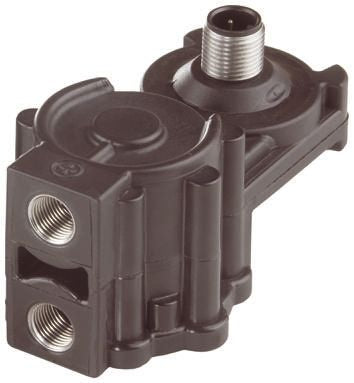

Jumo Differential for Fluid, Gas Pressure Sensor, 10bar Max Pressure Reading , 10 30 V dc, G1/8, IP67 [401050/000-459-405-593-68-601-36/000]; 186-545
by Jumo
0₫
Mã kho: 186545
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Differential |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 10bar |
| Media Measured | Fluid, Gas |
| Process Connection | G1/8 |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | M12 Connector |
| Supply Voltage | 10 → 30 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP67 |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -20°C |
