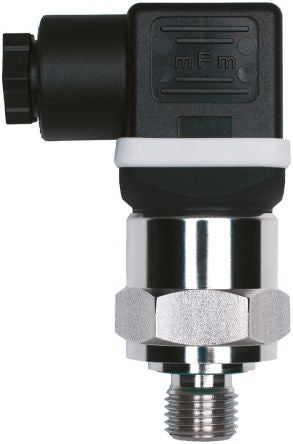

Jumo Pressure Sensor, 60bar Max Pressure Reading , 10 → 30 V dc, G1/4, IP65/ IP67 [401001/000-463-405-502-20-601-61/000]; 430-9812
by Jumo
0₫
Mã kho: 4309812
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 60bar |
| Process Connection | G1/4 |
| Electrical Connection | DIN 43650 Connector |
| Analogue Output | 4 → 20 mA |
| Supply Voltage | 10 → 30 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP65/ IP67 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +125°C |
