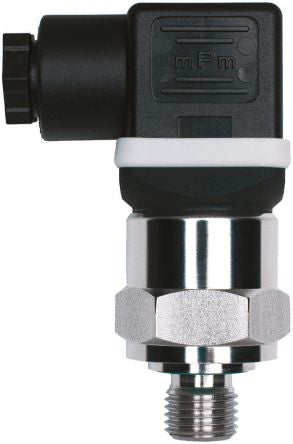

Jumo for Hydraulic Fluid, Pneumatic Fluid Pressure Sensor, 25bar Max Pressure Reading , 15 → 30 V dc, G1/2, IP65 [401001/000-461-405-523-20-601-61/000]; 463-5739
by Jumo
0₫
Mã kho: 4635739
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 25bar |
| Accuracy | 0.005 |
| Media Measured | Hydraulic Fluid, Pneumatic Fluid |
| Process Connection | G1/2 |
| Electrical Connection | DIN 43650 Connector |
| Analogue Output | 4 → 20 mA |
| Supply Voltage | 15 → 30 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP65 |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +80°C |
