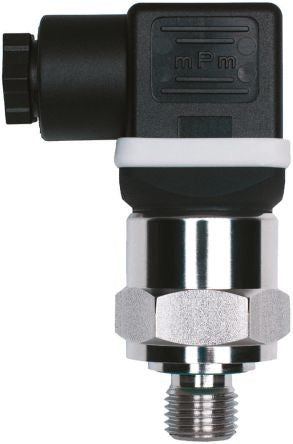

![Jumo 401001/000-460-405-523-20-601-61/000 4635723](http://nguyenxuong.com/cdn/shop/products/RD430982-02_293x444.jpg?v=1593759797)
Jumo for Hydraulic Fluid, Pneumatic Fluid Pressure Sensor, 16bar Max Pressure Reading , 15 → 30 V dc, G1/2, IP65 [401001/000-460-405-523-20-601-61/000]; 463-5723
by Jumo
0₫
Mã kho: 4635723
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Pressure Reading | 0bar |
Maximum Pressure Reading | 16bar |
Accuracy | 0.005 |
Media Measured | Hydraulic Fluid, Pneumatic Fluid |
Process Connection | G1/2 |
Electrical Connection | DIN 43650 Connector |
Analogue Output | 4 → 20 mA |
Supply Voltage | 15 → 30 V dc |
Housing Material | Stainless Steel |
IP Rating | IP65 |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +80°C |
