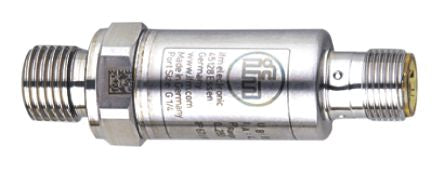

ifm electronic Relative for Gas, Liquid Pressure Sensor, 100bar Max Pressure Reading , 16 → 36 V dc, G1/4, IP67, [PU5402]; 835-3920
0₫
Mã kho: 8353920
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 100bar |
| Accuracy | ±0.5 % |
| Output Type | Analogue |
| Media Measured | Gas, Liquid |
| Process Connection | G1/4 |
| Analogue Output | 0 → 10 V |
| Electrical Connection | M12 Connector |
| Response Time | 1 ms |
| Supply Voltage | 16 → 36 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP67, IP69K |
| Maximum Operating Temperature | +90°C |
| Minimum Operating Temperature | -40°C |
