![ifm electronic PT5403 8353891](http://nguyenxuong.com/cdn/shop/products/F8353891-01_444x263.jpg?v=1594307563)

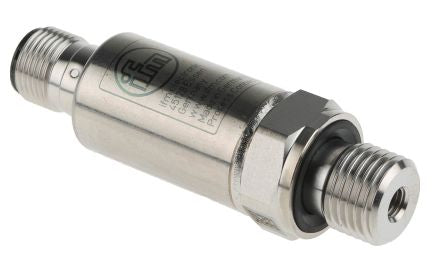

ifm electronic Relative for Gas, Liquid Pressure Sensor, 25bar Max Pressure Reading , 8.5 → 36 V dc, G1/4, IP67, [PT5403]; 835-3891
0₫
Mã kho: 8353891
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pressure Reading Type | Relative |
Minimum Pressure Reading | 0bar |
Maximum Pressure Reading | 25bar |
Accuracy | ±0.5 % |
Output Type | Analogue |
Media Measured | Gas, Liquid |
Process Connection | G1/4 |
Analogue Output | 4 → 20 mA |
Electrical Connection | M12 Connector |
Response Time | 1 ms |
Supply Voltage | 8.5 → 36 V dc |
Housing Material | Stainless Steel |
IP Rating | IP67, IP69K |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +90°C |
