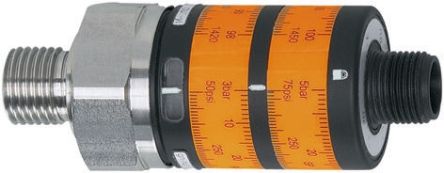

ifm electronic Relative for Fluid, Gas Pressure Sensor, 100bar Max Pressure Reading , 9.6 → 32 V dc, G1/4, IP67 [PK7522]; 487-955
0₫
Mã kho: 487955
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pressure Reading Type | Relative |
Minimum Pressure Reading | 0bar |
Maximum Pressure Reading | 100bar |
Accuracy | ±2.5 % |
Output Type | Relay |
Media Measured | Fluid, Gas |
Process Connection | G1/4 |
Electrical Connection | M12 Connector |
Maximum Current | 500 mA |
Supply Voltage | 9.6 → 32 V dc |
Housing Material | FPM, PBT, PC, Stainless Steel |
IP Rating | IP67 |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -25°C |
