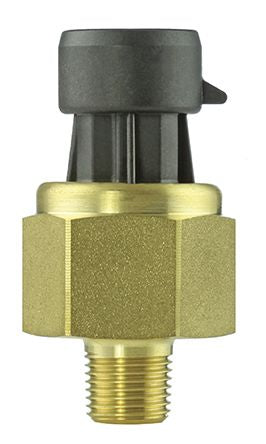

Honeywell Sealed Gauge for Various Media Pressure Sensor, 46bar Max Pressure Reading , 4.75 → 5.25 V dc, G1/4, [PX3AG1BH046BSAAX]; 111-5924
by Honeywell
0₫
Mã kho: 1115924
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pressure Reading Type | Relative |
Minimum Pressure Reading | 0bar |
Maximum Pressure Reading | 46bar |
Accuracy | ±0.25 % |
Output Type | Analogue |
Media Measured | Air, Brake Fluid, Hydraulic Fluid, Oil, Refrigeration Fluid |
Process Connection | G1/4 |
Analogue Output | 0.5 → 4.5 V |
Electrical Connection | Metri-Pack 150 |
Response Time | <2 ms |
Maximum Current | 3 mA |
Supply Voltage | 4.75 → 5.25 V dc |
Housing Material | Brass |
IP Rating | IP67 |
Mounting Type | Threaded |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +125°C |
