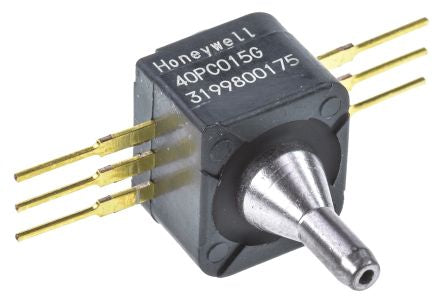

Honeywell Gauge for Gas Pressure Sensor, 15psi Max Pressure Reading , 4.75 → 5.25 V dc [40PC015G1A]; 293-8339
by Honeywell
0₫
Mã kho: 2938339
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pressure Reading Type | Relative |
Minimum Pressure Reading | 0psi |
Maximum Pressure Reading | 15psi |
Accuracy | ±0.4 % |
Output Type | Amplified |
Media Measured | Gas |
Analogue Output | 0.5 → 4.5 V |
Electrical Connection | PCB |
Response Time | 1 ms |
Maximum Current | 10 mA |
Supply Voltage | 4.75 → 5.25 V dc |
Minimum Operating Temperature | -45°C |
Maximum Operating Temperature | +125°C |
