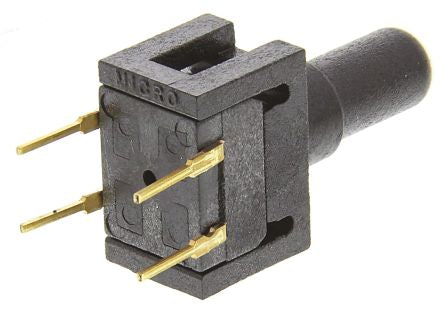

Honeywell Gauge for Nitrogen Gas, Oxygen Pressure Sensor, 30psi Max Pressure Reading , 2.5 → 16 V dc [26PCDFA2G]; 169-7680
by Honeywell
0₫
Mã kho: 1697680
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0psi |
| Maximum Pressure Reading | 30psi |
| Accuracy | ±0.25 % |
| Output Type | Wheatstone Bridge |
| Media Measured | Nitrogen Gas, Oxygen |
| Electrical Connection | PCB |
| Analogue Output | 0 → 100 mV |
| Response Time | 1 ms |
| Supply Voltage | 2.5 → 16 V dc |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
