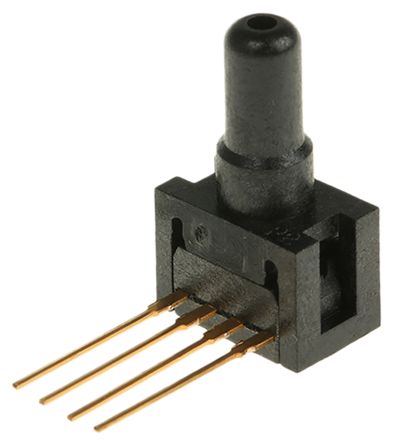

Honeywell Gauge Pressure Sensor, 1psi Max Pressure Reading , 10 V dc [24PCAFA6G]; 235-5784
by Honeywell
0₫
Mã kho: 2355784
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Gauge |
| Minimum Pressure Reading | 0psi |
| Maximum Pressure Reading | 1psi |
| Accuracy | ±0.15 % |
| Output Type | Unamplified |
| Media Measured | Nitrogen Gas, Oxygen, Water |
| Electrical Connection | Solder Tag |
| Analogue Output | 30 → 60 mV |
| Response Time | 1 ms |
| Supply Voltage | 10 V dc |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
