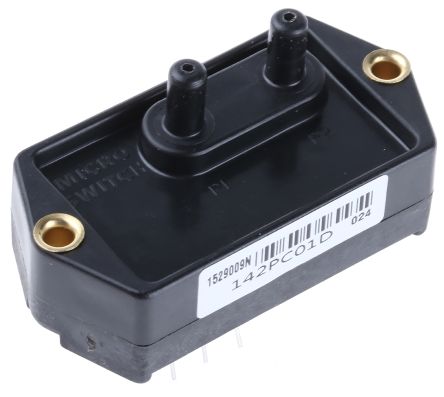

Honeywell Differential for Gas Pressure Sensor, 1psi Max Pressure Reading , 7 → 16 V dc [142PC01D]; 181-2090
by Honeywell
0₫
Mã kho: 1812090
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Differential |
| Minimum Pressure Reading | 0psi |
| Maximum Pressure Reading | 1psi |
| Accuracy | ±0.75 % |
| Output Type | Amplified |
| Media Measured | Gas |
| Electrical Connection | PCB |
| Analogue Output | 1 → 6 V |
| Response Time | 1 ms |
| Maximum Current | 20 mA |
| Supply Voltage | 7 → 16 V dc |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
