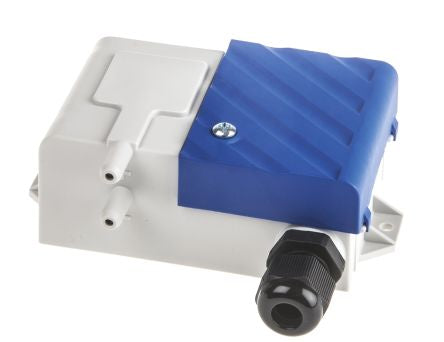

Gems Sensors Differential for Air, Non-Conductive Gas Pressure Sensor, 1000Pa Max Pressure Reading , 24 V dc [526610CLBHTI]; 535-1195
by Gems Sensors
0₫
Mã kho: 5351195
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Differential |
| Minimum Pressure Reading | -1000Pa |
| Maximum Pressure Reading | 1000Pa |
| Accuracy | ±1 % |
| Output Type | Analogue |
| Media Measured | Air, Non-Conductive Gas |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | Terminal Strip |
| Response Time | 1 s |
| Supply Voltage | 24 V dc |
| Housing Material | Stainless Steel |
| Maximum Operating Temperature | +65°C |
| Minimum Operating Temperature | -18°C |
