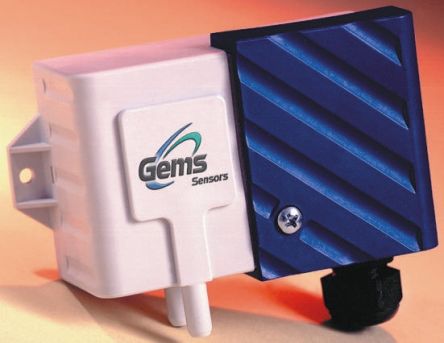

Gems Sensors Differential for Air, Non-Conductive Gas Pressure Sensor, 100Pa Max Pressure Reading , 24 V ac/dc [5266100LBACTI]; 535-1218
by Gems Sensors
0₫
Mã kho: 5351218
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pressure Reading Type | Differential |
Minimum Pressure Reading | -100Pa |
Maximum Pressure Reading | 100Pa |
Accuracy | ±1 % |
Output Type | Analogue |
Media Measured | Air, Non-Conductive Gas |
Electrical Connection | Terminal Strip |
Analogue Output | 0 → 10 V |
Response Time | 1 s |
Supply Voltage | 24 V ac/dc |
Housing Material | Stainless Steel |
Minimum Operating Temperature | -18°C |
Maximum Operating Temperature | +65°C |
