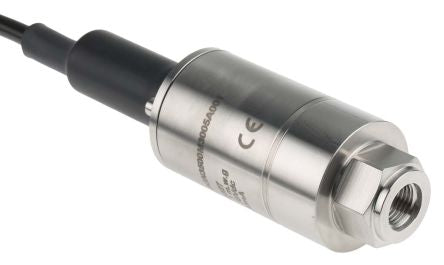

Gems Sensors Gauge Pressure Sensor, 350mbar Max Pressure Reading , 9 → 35 V dc, G1/4, IP68 [5000BGN3500M3005A001]; 448-8022
by Gems Sensors
0₫
Mã kho: 4488022
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pressure Reading Type | Relative |
Minimum Pressure Reading | 201mbar |
Maximum Pressure Reading | 0.35bar |
Accuracy | 0.002 |
Process Connection | G1/4 |
Analogue Output | 4 → 20 mA |
Electrical Connection | Wire Lead |
Response Time | 5 ms |
Supply Voltage | 9 → 35 V dc |
Housing Material | Stainless Steel |
IP Rating | IP68 |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +50°C |
