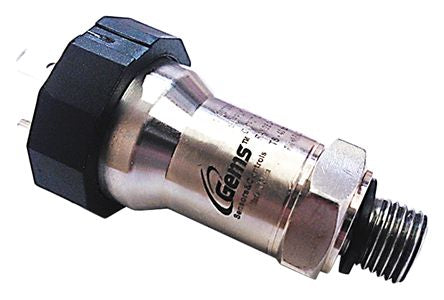

Gems Sensors Gauge for Air, Gas, Water Pressure Sensor, 2.5bar Max Pressure Reading , 10 → 30 V dc, G1/4, IP67 [3500B02B5G01G000]; 896-8456
by Gems Sensors
0₫
Mã kho: 8968456
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pressure Reading Type | Relative |
Maximum Pressure Reading | 2.5bar |
Accuracy | 0.0025 |
Output Type | Current |
Media Measured | Air, Gas, Water |
Process Connection | G1/4 |
Electrical Connection | DIN 43650 Type A |
Analogue Output | 4 → 20 mA |
Supply Voltage | 10 → 30 V dc |
Housing Material | Stainless Steel |
IP Rating | IP67 |
Minimum Operating Temperature | -40°C |
Mounting Type | Threaded |
Maximum Operating Temperature | +125°C |
