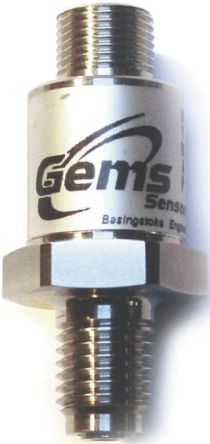

![Gems Sensors 3100R2200S2TE000 4554860](http://nguyenxuong.com/cdn/shop/products/C455478-01_210x444.jpg?v=1594026896)
Gems Sensors for Various Media Pressure Sensor, 2200bar Max Pressure Reading , 10 → 36 V dc, M12, IP67 [3100R2200S2TE000]; 455-4860
by Gems Sensors
0₫
Mã kho: 4554860
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Pressure Reading | 0bar |
Maximum Pressure Reading | 2200bar |
Accuracy | 0.0025 |
Output Type | Analogue |
Media Measured | Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil |
Process Connection | M12 |
Electrical Connection | M12 Connector |
Analogue Output | 0 → 5 V |
Supply Voltage | 10 → 36 V dc |
IP Rating | IP67 |
Maximum Pressure Setting | 2200bar |
Maximum Operating Temperature | +120°C |
Minimum Operating Temperature | -40°C |
Minimum Pressure Setting | 10bar |
