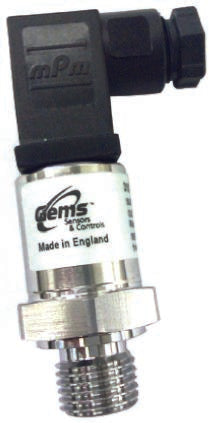

Gems Sensors Gauge for Various Media Pressure Sensor, 1600bar Max Pressure Reading , 8 → 30 V dc, M12, IP65 [3100B1600S2TB000]; 455-4731
by Gems Sensors
0₫
Mã kho: 4554731
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pressure Reading Type | Gauge |
Minimum Pressure Reading | 0bar |
Maximum Pressure Reading | 1600bar |
Accuracy | 0.0025 |
Output Type | Analogue |
Media Measured | Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil |
Process Connection | M12 |
Electrical Connection | DIN 43650 Type A |
Analogue Output | 4 → 20 mA |
Response Time | 1 ms |
Supply Voltage | 8 → 30 V dc |
IP Rating | IP65 |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +125°C |
