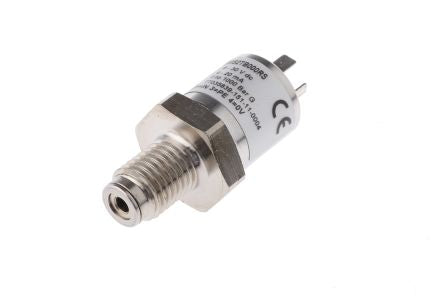

Gems Sensors Gauge for Various Media Pressure Sensor, 1000bar Max Pressure Reading , 8 → 30 V dc, M12, IP65 [3100B1000S2TB000]; 455-4719
by Gems Sensors
0₫
Mã kho: 4554719
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Gauge |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 1000bar |
| Accuracy | 0.0025 |
| Output Type | Analogue |
| Media Measured | Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil |
| Process Connection | M12 |
| Electrical Connection | DIN 43650 Type C |
| Analogue Output | 4 → 20 mA |
| Response Time | 1 ms |
| Supply Voltage | 8 → 30 V dc |
| IP Rating | IP65 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
