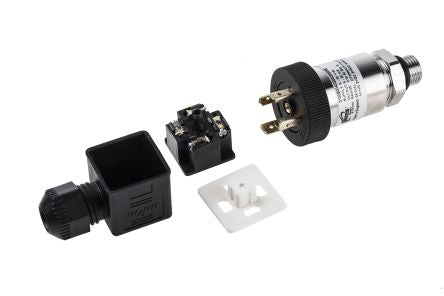

Gems Sensors Gauge for Fluid, Gas Pressure Sensor, 40bar Max Pressure Reading , 8 → 30 V dc, G1/4, IP65 [3100B0040G05G000]; 795-4749
by Gems Sensors
0₫
Mã kho: 7954749
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 40bar |
| Accuracy | ±0.25 % |
| Output Type | Current |
| Media Measured | Fluid, Gas |
| Process Connection | G1/4 |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | DIN 43650 Type A |
| Response Time | 1 ms |
| Maximum Current | 20 mA |
| Supply Voltage | 8 → 30 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP65 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
