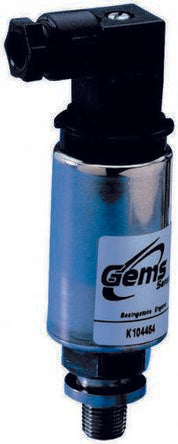

Gems Sensors ATEX Gauge for Fluid, Gas Pressure Sensor, 250bar Max Pressure Reading , 7 → 35 V dc, BSP 1/4, IP65 [22ISBGC2500ABUA001]; 455-4573
by Gems Sensors
0₫
Mã kho: 4554573
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 250bar |
| Accuracy | 0.0025 |
| Output Type | Analogue |
| Media Measured | Fluid, Gas |
| Process Connection | G1/4 |
| Electrical Connection | DIN 43650 Type A |
| Analogue Output | 4 → 20 mA |
| Supply Voltage | 7 → 35 V dc |
| IP Rating | IP65 |
| Minimum Operating Temperature | -40°C |
| Hazardous Area Certification | ATEX |
| Maximum Operating Temperature | +100°C |
