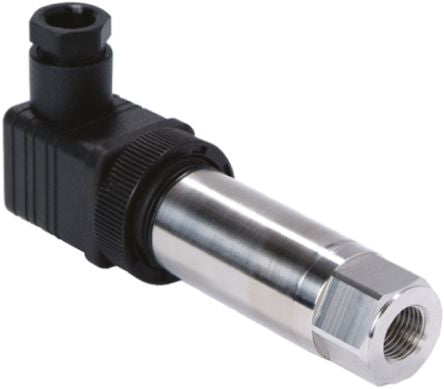

Druck ATEX Sealed Gauge for Fluid Pressure Sensor, 250bar Max Pressure Reading , 7 → 16 V, G1/4, IP68 [A5074-TB-A1-CA-H1-PA 250 bar SG]; 746-3587
by Druck
0₫
Mã kho: 7463587
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Relative |
| Maximum Pressure Reading | 250bar |
| Accuracy | ±0.2 % |
| Output Type | Analogue |
| Media Measured | Fluid |
| Process Connection | G1/4 |
| Analogue Output | 0 → 5 V |
| Electrical Connection | DIN 43650 Type A |
| Response Time | 10 ms |
| Maximum Current | 3 mA |
| Supply Voltage | 7 → 16 V |
| Housing Material | Stainless Steel |
| IP Rating | IP68 |
| Hazardous Area Certification | ATEX |
