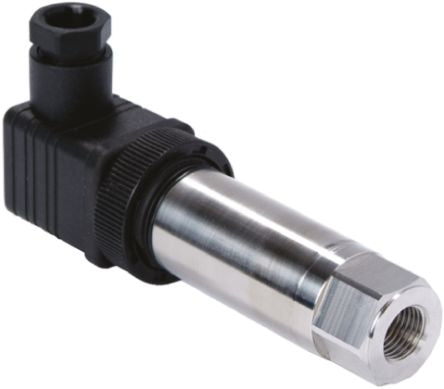

Druck ATEX Sealed Gauge for Fluid Pressure Sensor, 100bar Max Pressure Reading , 7 → 16 V, G1/4, IP68 [A5074-TB-A1-CA-H1-PA 100 bar SG]; 746-3571
by Druck
0₫
Mã kho: 7463571
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pressure Reading Type | Relative |
Maximum Pressure Reading | 100bar |
Accuracy | ±0.2 % |
Output Type | Analogue |
Media Measured | Fluid |
Process Connection | G1/4 |
Analogue Output | 0 → 5 V |
Electrical Connection | DIN 43650 Type A |
Response Time | 10 ms |
Maximum Current | 3 mA |
Supply Voltage | 7 → 16 V |
Housing Material | Stainless Steel |
IP Rating | IP68 |
Hazardous Area Certification | ATEX |
