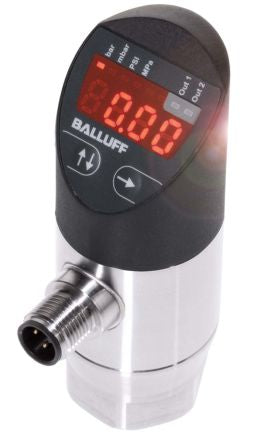

BALLUFF Pressure Sensor, IO-Link, 400bar Max Pressure Reading , 18 → 36 V dc, G1/4, IP67 [BSP B400-EV002-A02S1B-S4]; 135-0301
by BALLUFF
0₫
Mã kho: 1350301
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Pressure Reading | 0bar |
Maximum Pressure Reading | 400bar |
Accuracy | ±0.2 (Repeat) % |
Output Type | PNP |
Process Connection | G1/4 |
Electrical Connection | 4-Pin M12 Connector |
Analogue Output | 4 → 20 mA |
Communication Protocol | IO-LINK |
Maximum Current | 250 mA |
Supply Voltage | 18 → 36 V dc |
Interface | IO-Link |
Housing Material | Nylon 66 |
IP Rating | IP67 |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +85°C |
