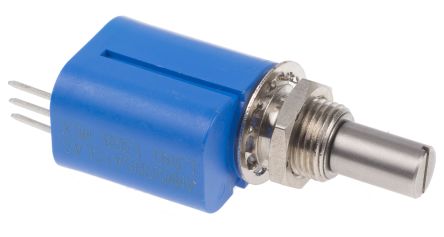

Bourns Block Plastic Analogue Position Sensor, Bushing Mount, 12 mA, 5 V dc, IP50, 20.22 x 14.29 x 42.17 mm [AMM20B5A1CLASL380]; 167-5487
by Bourns
0₫
Mã kho: 1675487
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | Analogue |
| Terminal Type | Axial PC Pin |
| Mounting Style | Bushing Mount |
| Switching Current | 12 mA |
| Maximum DC Voltage | 5V |
| Supply Voltage | 5 V dc |
| Housing Material | Plastic |
| IP Rating | IP50 |
| Length | 20.22mm |
| Width | 14.29mm |
| Dimensions | 20.22 x 14.29 x 42.17 mm |
| Depth | 42.17mm |
