![ON Semiconductor FPF2895UCX 1464420](http://nguyenxuong.com/cdn/shop/products/Y1464420-01_444x386.jpg?v=1594101042)

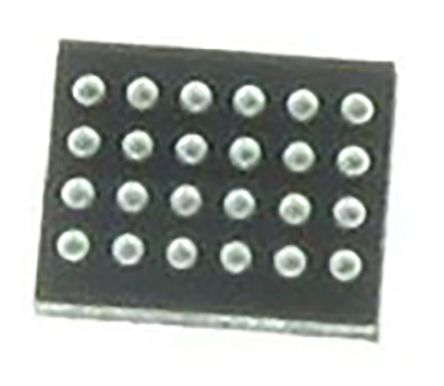

ON Semiconductor FPF2895UCX Power Switch IC, Low Side 24-Pin, WLCSP [FPF2895UCX]; 146-4420
0₫
Mã kho: 1464420
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Power Switch Topology | Low Side |
Power Switch Type | Low Side |
Switch On Resistance | 39mΩ |
Number of Channels | 1 |
Maximum Operating Supply Voltage | 22 V |
Maximum Operating Current | 5A |
Mounting Type | Surface Mount |
Package Type | WLCSP |
Pin Count | 24 |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Dimensions | 1.67 x 2.6 x 0.37mm |
Series | FPF2895 |
