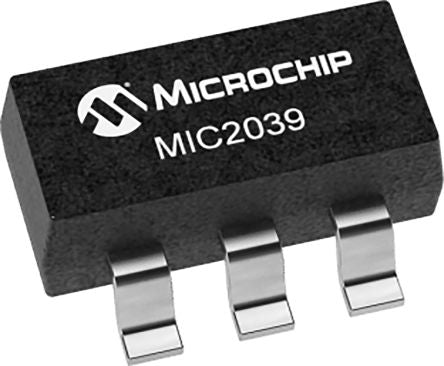

Microchip Technology MIC2039AYM6-TR Power Control Switch, Adjustable Current-Limit Power Switch 6-Pin, SOT-23 [MIC2039AYM6-TR]; 177-2884
by Microchip
0₫
Mã kho: 1772884
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Adjustable Current-Limit Power Switch |
| Power Switch Topology | High Side |
| Switch On Resistance | 75mΩ |
| Number of Channels | 1 |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Current | 300µA |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 6 |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 2.9 x 1.75 x 1.3mm |
| Series | MIC2039 |
