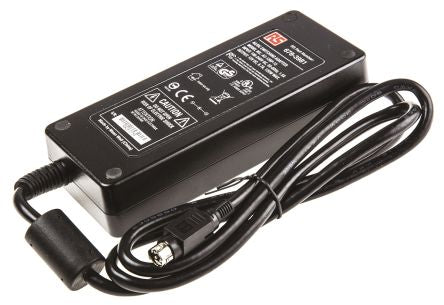

RS PRO 15V dc Power Supply for Laptop, 6.7A, C14 Connector; 678-3981
by RS PRO
0₫
Mã kho: 6783981
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage Range | 90 → 264 V ac, 127 → 370 V dc |
| Output Voltage Rating | 15 V dc |
| Output Current Range | 6.7A |
| Rated Output Power | 100/20W |
| Input Connector | IEC320-C14 |
| Output Connection Type | R7B |
| Number of Outputs | 1 |
| Plug Type | C14 |
| Load Regulation Range | ±3% |
| Operating Temperature Range | 0 → +50 °C |
| Minimum Temperature | 0°C |
| Overall Length | 167mm |
| Efficiency | 0.88 |
| Weight | 520g |
| Holdup Time | 16 ms @ 115 V ac, 50 ms @ 230 V ac |
| Cable Length | 1200mm |
| Maximum Temperature | +50°C |
| Standards Met | ErP Compliant |
| Overall Depth | 35mm |
| Overall Width | 67mm |
| Overall Dimensions | 167 x 67 x 35mm |
| Energy Efficiency Level | V |
