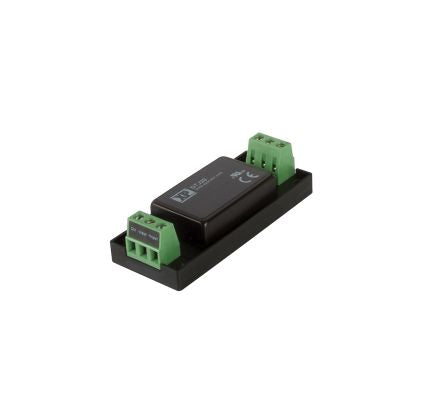

DC/DC Converter Isolated +/-15V 20W [DTJ2024D15]; 193-5895
by XP Power
0₫
Mã kho: 1935895
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±15V dc |
| Power Rating | 20W |
| Input Voltage Range | 9 → 36 V dc |
| Output Current | ±665mA |
| Isolation Voltage | 3kV dc |
| Input Voltage Nominal | 24 V dc |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Efficiency | 0.87 |
| Load Regulation | ±1% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
| Series | DTJ20 |
| Depth | 19.4mm |
| Length | 76.2mm |
| Width | 31.4mm |
