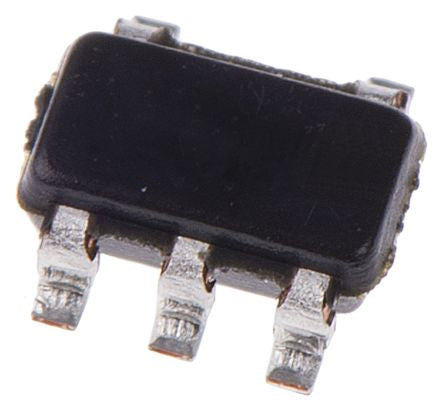

Texas Instruments TPS76901DBVR, LDO Regulator, 100mA Adjustable, 1.2 → 5.5 V, ±3% 5-Pin, SOT-23 [TPS76901DBVR]; 661-4305
0₫
Mã kho: 6614305
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.2 → 5.5 V |
| Output Type | Adjustable |
| Package Type | SOT-23 |
| Maximum Output Current | 100mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.7 V |
| Maximum Input Voltage | 10 V |
| Pin Count | 5 |
| Polarity | Positive |
| Number of Outputs | 1 |
| Quiescent Current | 0.017mA |
| Accuracy | ±3% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Power Rating | 0.555W |
| Enable | Yes |
| Reference Voltage | 1.224V |
| Height | 1.15mm |
| Length | 2.9mm |
| Dimensions | 2.9 x 1.6 x 1.15mm |
| Load Regulation | 12 mV |
| Width | 1.6mm |
| Line Regulation | 0.04 %/V |
