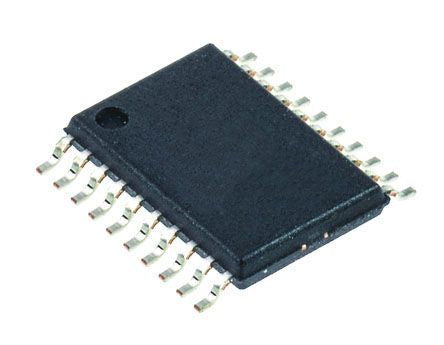

Texas Instruments TPS70148PWP, Dual LDO Regulator, 500mA, 1.5 V, 3.3 V, ±2% 20-Pin, HTSSOP [TPS70148PWP]; 422-879
0₫
Mã kho: 422879
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.5 V, 3.3 V |
| Output Type | Fixed |
| Package Type | HTSSOP |
| Maximum Output Current | 500mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.7 V |
| Maximum Input Voltage | 6 V |
| Pin Count | 20 |
| Polarity | Positive |
| Number of Outputs | 2 |
| Quiescent Current | 0.19mA |
| Accuracy | ±2% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Line Regulation | 0.0001 |
| Height | 1.15mm |
| Dimensions | 6.5 x 4.4 x 1.15mm |
| Length | 6.5mm |
| Enable | Yes |
| Width | 4.4mm |
| Load Regulation | 1 mV |
