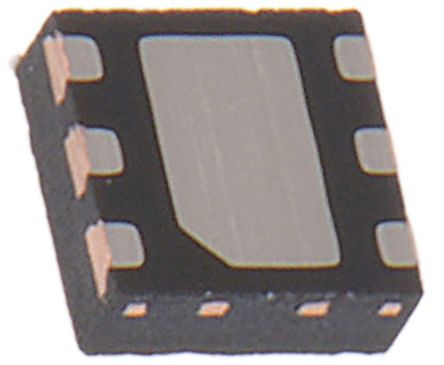

Texas Instruments LP5910-1.8DRVT, LDO Regulator, 300mA, 1.8 V, 2%, 1.3 → 3.3 Vin 6-Pin, WSON [LP5910-1.8DRVT]; 133-0681
0₫
Mã kho: 1330681
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.8 V |
| Output Type | Fixed |
| Package Type | WSON |
| Maximum Output Current | 300mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 1.3 V |
| Maximum Input Voltage | 3.3 V |
| Pin Count | 6 |
| Polarity | Positive |
| Number of Outputs | 1 |
| Quiescent Current | 350µA |
| Accuracy | 0.02 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 0.75mm |
| Length | 2.1mm |
| Line Regulation | 0.01 %/V |
| Load Regulation | 0.002 %/mA |
| Dimensions | 2.1 x 2.1 x 0.75mm |
| Width | 2.1mm |
| Enable | Yes |
