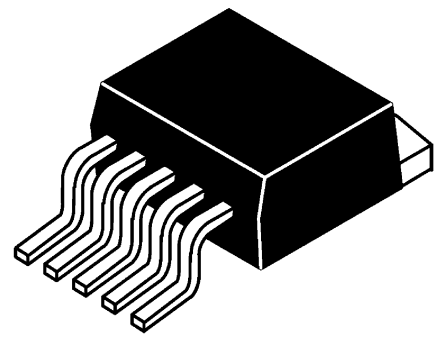

Texas Instruments LP3892ES-1.2/NOPB, Fast LDO Voltage Regulator, 1.5A, 1.2 V, ±1.5% 5-Pin D2PAK [LP3892ES-1.2/NOPB]; 162-5137
0₫
Mã kho: 1625137
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.2 V |
| Output Type | Fixed |
| Package Type | D2PAK (TO-263) |
| Maximum Output Current | 1.5A |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 1.34 V |
| Maximum Input Voltage | 5.5 V |
| Pin Count | 5 |
| Number of Outputs | 1 |
| Polarity | Positive |
| Accuracy | ±1.5% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 10.16 x 8.64 x 4.57mm |
| Line Regulation | 0.01 %/V |
| Enable | Yes |
| Width | 8.64mm |
| Length | 10.16mm |
| Height | 4.57mm |
| Load Regulation | 0.04 %/A |
