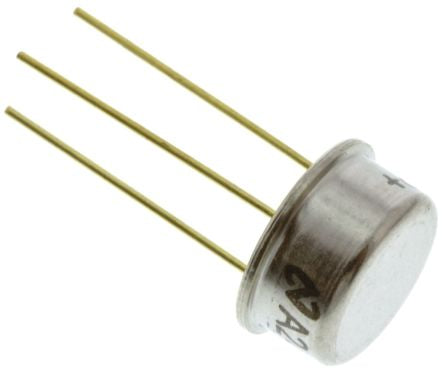

Texas Instruments LM117H/NOPB Linear Voltage Regulator, 500mA, Adjustable, 1.2 → 37 V 3-Pin, TO-39 [LM117H/NOPB]; 121-8300
0₫
Mã kho: 1218300
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.2 → 37 V |
| Maximum Output Current | 500mA |
| Package Type | TO-39 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Minimum Input Voltage | 4.2 V |
| Maximum Input Voltage | 40 V |
| Pin Count | 3 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Number of Outputs | 1 |
| Polarity | Positive |
| Series | LM117H |
| Load Regulation | 0.003 |
| Height | 4.45mm |
| Width | 9.14mm |
| Line Regulation | 0.02 %/V |
| Length | 9.14mm |
| Reference Voltage | 1.3V |
| Dimensions | 9.14 x 9.14 x 4.45mm |
