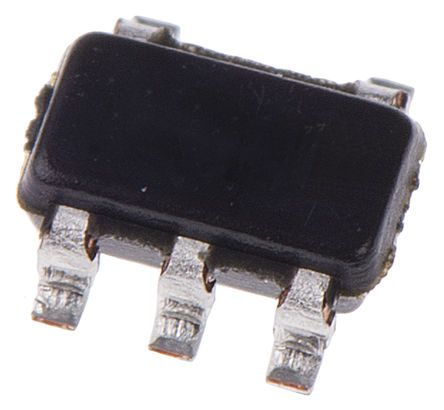

ON Semiconductor NCV8114ASN300T1G LDO Regulator, 600mA, 3 V, -2 → +3% 5-Pin, TSOP [NCV8114ASN300T1G]; 141-3581
0₫
Mã kho: 1413581
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 3 V |
| Maximum Output Current | 600mA |
| Package Type | TSOP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 1.7 V |
| Maximum Input Voltage | 5.5 V |
| Pin Count | 5 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Outputs | 1 |
| Polarity | Positive |
| Accuracy | -2 → +3% |
| Automotive Standard | AEC-Q100 |
| Length | 3.15mm |
| Line Regulation | 0.1 %/V |
| Load Regulation | 45 mV |
| Quiescent Current | 50µA |
| Dropout Voltage Measurement Current | 300 mA |
| Typical Dropout Voltage @ Current | 160 mV @ 300 mA |
| Dimensions | 3.15 x 1.65 x 1mm |
| Series | NCV8114 |
| Height | 1mm |
| Width | 1.65mm |
