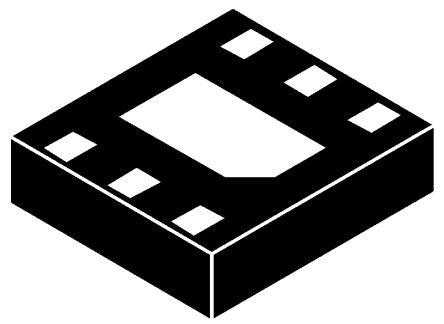

ON Semiconductor NCV5661MN30T2G, LDO Regulator, 1A, 3 V, ±2%, 2 → 9 Vin 6-Pin, DFN [NCV5661MN30T2G]; 121-7966
0₫
Mã kho: 1217966
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 3 V |
| Output Type | Fixed |
| Package Type | DFN |
| Maximum Output Current | 1A |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2 V |
| Maximum Input Voltage | 9 V |
| Pin Count | 6 |
| Polarity | Positive |
| Number of Outputs | 1 |
| Quiescent Current | 3mA |
| Accuracy | ±2% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 0.85mm |
| Length | 3.3mm |
| Line Regulation | 0.0003 |
| Load Regulation | 0.002 |
| Width | 3mm |
| Dimensions | 3.3 x 3 x 0.85mm |
| Reference Voltage | 0.9V |
